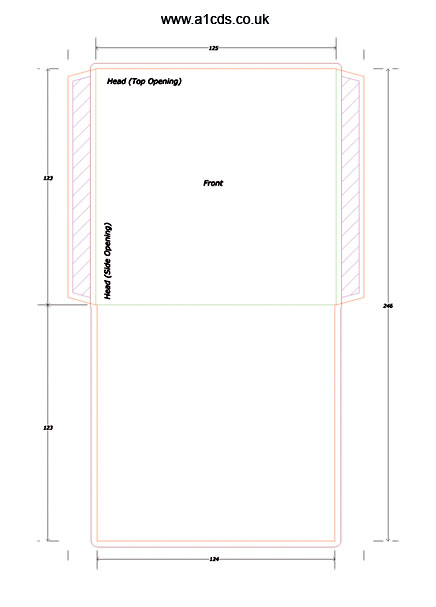

Card Sleeve - Wallet Printing Spec.
Bleed required 3mm.
The measurements given are exact and 3 mm bleed should be added on each edge to allow for trim.
When the artwork is trimmed, slight variations can occur so the 3 mm is there to to avoid a white line being shown on trimmed edges.
Finished Artwork Size Including Bleed.
The total dimensions including bleed for The above would therefore be:
Width = 131mm (Width of front (125) + 3mm bleed left + Right = 131mm
Hight = 256 mm (Hight of both sides 125 + 125 plus 3mm bleed top +
3mm bleed bottom) = 256mm
3mm Safe Rule.
No text or detail should be placed closer than 3 mm to trimmed edges or folds, this ensures no loss of detail etc in the folding, trimming process.
